PVC, Inlays & Overlays

The laminator is nothing without laminates - You are right on the spot if you're looking for the matching raw materials for your lamination process. We offer a wide range of inlays for RFID data exchange, as well as inlays for chip readers. Our selection of pvc-overlay sheets includes various thicknesses and colors to complete your laminate.

This list of products is not complete, and all presented items can be customized as well. Feel free to browse through our selection and get in touch with us. If you have any questions about the products or are interested in a quote, please feel free to use our contact form.

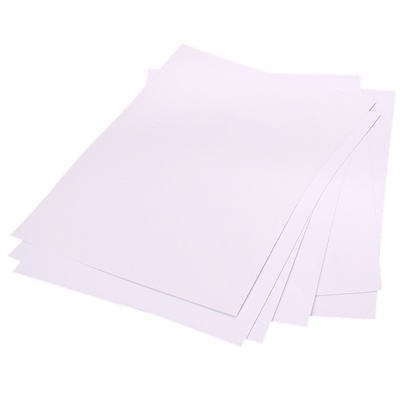

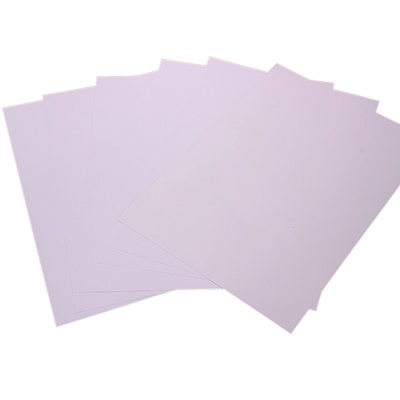

PVC Core Sheet

Product Details:

Thickness: 0.10~0.15 mm ± 10 %, 0.151~0.30 mm ± 6%, 0.301~0.50 mm ± 4 %, 0.501~0.81 ± 3 %
Squareness: ≤ 1.0 mm/M
Surface: Matt/Glossy
Roughness: 0.7 ~1.6 µm
Fluoreacence: No
Tensile Strenght (MD): ≥ 38 MPa
Impact Strenght: ≥ 450 Kj/m²
Vicat Softening Temperature (B50 Method): 78 ± 2 °C
Surface Tension (roll side): ≥36 dyne/cm
Surface Tension (air side): ≥ 34 dyne/cm
Density: 1.4 ± 0.05 g/cm³

The PVC material can be modified according to your requirements.

Contact us

Applications & Benefits

Applications.

Bank, debit, credit cards
Smart, chip cards
Contactless, RFID cards
Identification cards
Membership, loyalty card Gift, playing cards

Benefits:

Batch to batch consistency
Consistent sheet squareness,
side-to-side surface uniformity
Customized surface of matte or gloss
Printable with conventional screen and offset printing
UV printing, or various other print methods
Non toxic, manufactured in a controlled environment to the strictest standards
