Lamination Pads

Our high-quality press pads are an essential tool in any lamination process. In the past, many layers of paper were used as a cushion during lamination, but today's modern press pads consist of multiple heat-resistant layers, each with specific properties to optimize performance. This innovation has allowed us to develop a range of lamination pads suitable for different applications.

We offer a wide range of pads in various thicknesses, surface textures, and heat resistances to meet your needs—whether for card lamination or other uses. Our products are designed to overcome a variety of challenges and ensure smooth and efficient lamination results.

Take a moment to explore our range! If you have any questions or special requirements, please do not hesitate to contact us. We look forward to hearing from you and supporting your projects!

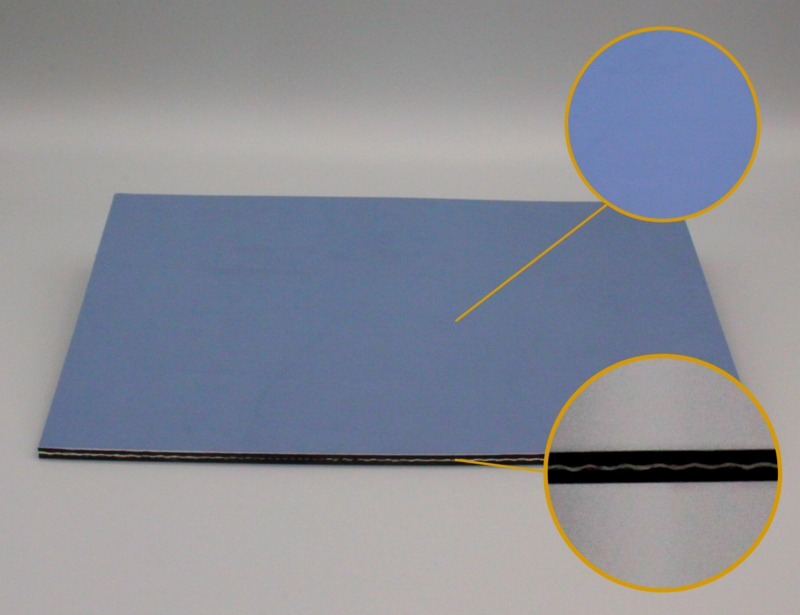

Genius

The next level when it comes to innovative materials. The press pad "Genius" combines cushion ability, homogeneous heat transfer with absolute no-sticking surfaces. This mix results from the use of three distinctive materials, for the respective use.

The outer layers are PTFE, with non-stick features. The inner layers are silicone rubber, for best cushion ability. The middle layer consists of glass fibre for good heat conductivity and heat distribution. PTFE has another advantage when it comes to dirt, dust or particles. The surface is easy to clean and dries immediately.

The maximum operating temperature is 260 °C.

Every pad is produced on demand, according to the specific requirements of the lamination process. Size and special treatments are hand customized here in Viersen Germany.

  • Available thickness in mm: Approx. 3.3
  • Application: PCB, PVC, PC, ABS, PET(G), etc.


Technical Details

  • Material: Outer layers PTFE, 2 inner layers with silicone rubber, 1 middle layer of glass fibre.
  • Surface: PTFE
  • Max. temperature: 260 °C (depending on application)
  • Rebounding Level: Up to 99 %
  • Compression: Thickness remains over the complete lifecycle
  • Application: PCB, PVC, PC, ABS, PET(G), etc.
  • Available in thickness (article number at Schwan):
    • 3.3 mm (PGEN33)

Download Specification Data Sheet

Press Pad Genius

Press Pad Genius



Included Services

Reliable and solid packaging: Every order is shipped in a customized wooden box. Therefore, the plates can't move and damage themselves within the packaging
Test of heat conductivity: Every produced batch is tested for homogeneous heat conductivity.

Optional Services

Positioning holes: Due to laser technology, positioning holes can be applied accurate to the hundredth of a millimeter.
Marking: Data-Matrix Codes, serial number, QR-Code can be applied or customized to every scope of application.
Research & Development: We are always open to new ideas and willing to try new set-ups.
