Lamination Pads

Our high-quality press pads are an essential tool in any lamination process. In the past, many layers of paper were used as a cushion during lamination, but today's modern press pads consist of multiple heat-resistant layers, each with specific properties to optimize performance. This innovation has allowed us to develop a range of lamination pads suitable for different applications.

We offer a wide range of pads in various thicknesses, surface textures, and heat resistances to meet your needs—whether for card lamination or other uses. Our products are designed to overcome a variety of challenges and ensure smooth and efficient lamination results.

Take a moment to explore our range! If you have any questions or special requirements, please do not hesitate to contact us. We look forward to hearing from you and supporting your projects!

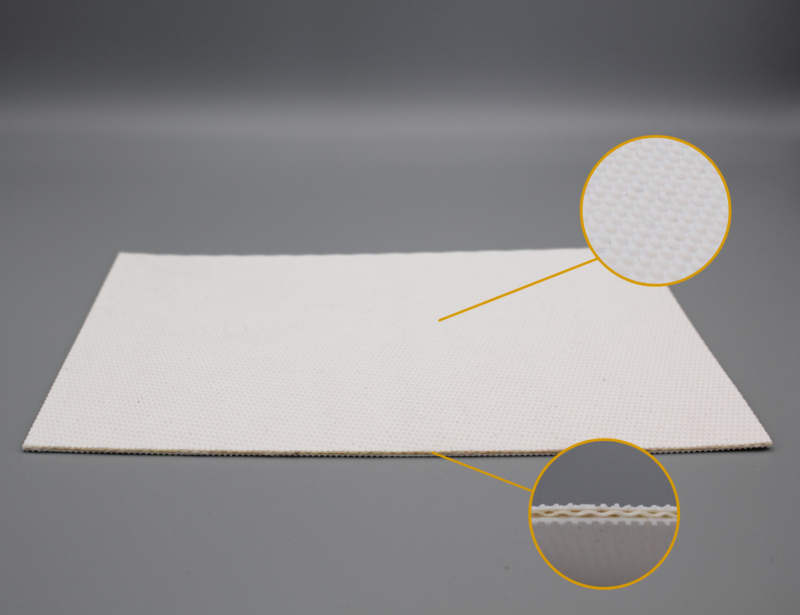

P6200 Series

Our P6200 press pad is a well-established series in the card industry which is suitable for almost all types of cards. It is a 3-layer press pad with silicone rubber, each surrounded by a layer of glass fabric.

The P6200 series is characterized by excellent thermal conductivity and can be used at temperatures of up to 260°C (depending on the application). Its main advantages are its high cushioning ability and pressure equalization within the cassette. These properties help to extend the service life of the pad and therefore reduce production costs.

Each pad is produced on request and according to the specific requirements of the lamination process. Size and special treatments are customized by hand here in Viersen, Germany.

  • Available thickness in mm: 1.9 | 2.3 | 2.7 | 3.3
  • Application: PVC, PC, ABS, PET(G), etc.


Technical Details

  • Material: 2 layers of silicone rubber, 1 layer of glass fabric
  • Surface: Top and bottom structured
  • Max. temperature: 260 °C (depending on application)
  • Rebounding Level: Up to 99 %
  • Compression: Thickness remains over the complete lifecycle
  • Application: PVC, PC, ABS, PET(G), etc.
  • Available in thickness (article number at Schwan):
    • 1.9 mm (P6219)
    • 2.3 mm (P6223)
    • 2.7 mm (P6227)
    • 3.3 mm (P6233)

Download Specification Data Sheet

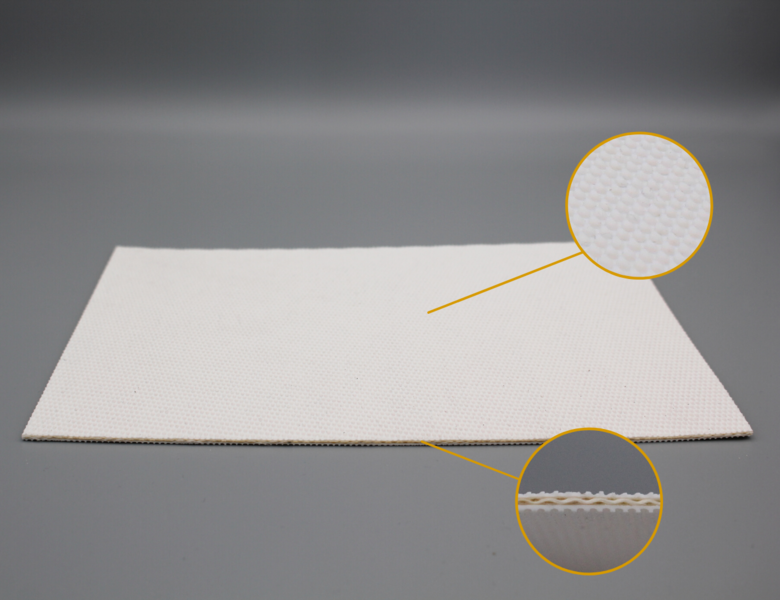

Press Pad P6200 Series

P6200 Series



Included Services

Reliable and solid packaging: Every order is shipped in a customized wooden box. Therefore, the plates can't move and damage themselves within the packaging.
Test of heat conductivity: Every produced batch is tested for homogeneous heat conductivity.

Optional Services

Positioning holes: Due to laser technology, positioning holes can be applied accurate to the hundredth of a millimeter.
Marking: Data-Matrix Codes, serial number, QR-Code can be applied or customized to every scope of application.
Research & Development: We are always open to new ideas and willing to try new set-ups.
Individual shape: Apart from the standard rectangle, all kinds of shapes or cutouts are feasible.
