Lamination Pads

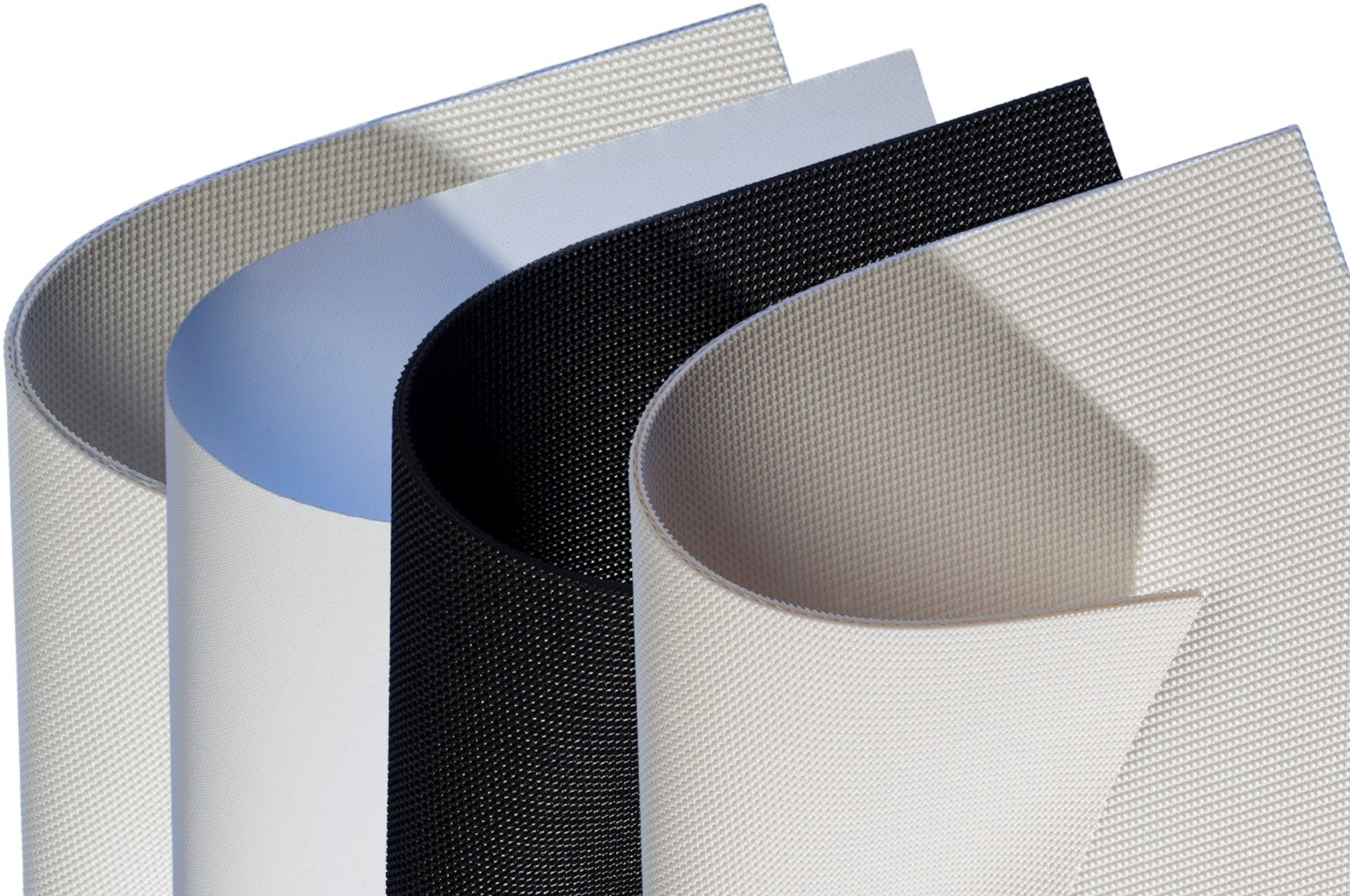

Our high-quality press pads are an essential tool in any lamination process. In the past, many layers of paper were used as a cushion during lamination, but today's modern press pads consist of multiple heat-resistant layers, each with specific properties to optimize performance. This innovation has allowed us to develop a range of lamination pads suitable for different applications.

We offer a wide range of pads in various thicknesses, surface textures, and heat resistances to meet your needs—whether for card lamination or other uses. Our products are designed to overcome a variety of challenges and ensure smooth and efficient lamination results.

Take a moment to explore our range! If you have any questions or special requirements, please do not hesitate to contact us. We look forward to hearing from you and supporting your projects!



P7200 Series

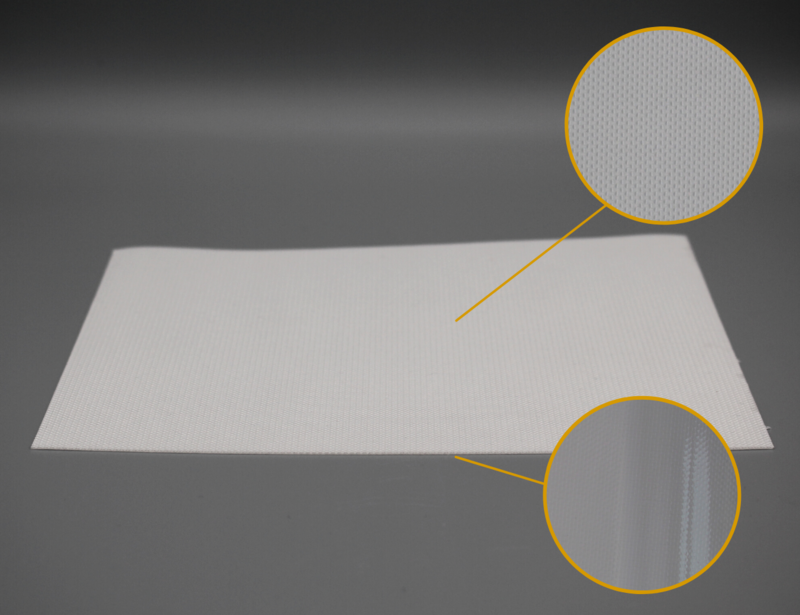

The P7200 Series is a thin press pad mainly designed for two purposes within the card production.

Some of our clients run very fast lamination cycles. The thin construction supports a rapid heat transfer to achieve short press intervals.

Furthermore, a lot of our clients use the P7200 as a middle layer within the booklet as an additional buffer. One side of the pad has a smooth, rubberized surface. The other side is made of fabric. The pad has an operating temperature of max: 200° C.

Every pad is produced on demand, according to the specific requirements of the lamination process. Size and special treatments are hand customized here in Viersen, Germany.

  • Available thickness in mm: 0.7
  • Application: Security cards, ID cards, passports


Technical Details

  • Material: 1 layer of silicone rubber, 1 layer of fabric
  • Surface: Top structured & bottom smooth
  • Max. temperature: 200°C
  • Compression: Thickness remains over the complete lifecycle
  • Application: Security cards, ID cards, passports
  • Available in thickness (article number at Schwan):
    • 0.7 mm (P7207)

Download Specification Data Sheet

Press Pad P7200 Series

P7200 Series



Included Services

Reliable and solid packaging: Every order is shipped in a customized wooden box. Therefore, the plates can't move and damage themselves within the packaging
Test of heat conductivity: Every produced batch is tested for homogeneous heat conductivity.

Optional Services

Positioning holes: Due to laser technology, positioning holes can be applied accurate to the hundredth of a millimeter.
Marking: Data-Matrix Codes, serial number, QR-Code can be applied or customized to every scope of application.
Research & Development: We are always open to new ideas and willing to try new set-ups.
Individual shape: Apart from the standard rectangle, all kinds of shapes or cutouts are feasible.
