Lamination Pads

Our high-quality press pads are an essential tool in any lamination process. In the past, many layers of paper were used as a cushion during lamination, but today's modern press pads consist of multiple heat-resistant layers, each with specific properties to optimize performance. This innovation has allowed us to develop a range of lamination pads suitable for different applications.

We offer a wide range of pads in various thicknesses, surface textures, and heat resistances to meet your needs—whether for card lamination or other uses. Our products are designed to overcome a variety of challenges and ensure smooth and efficient lamination results.

Take a moment to explore our range! If you have any questions or special requirements, please do not hesitate to contact us. We look forward to hearing from you and supporting your projects!

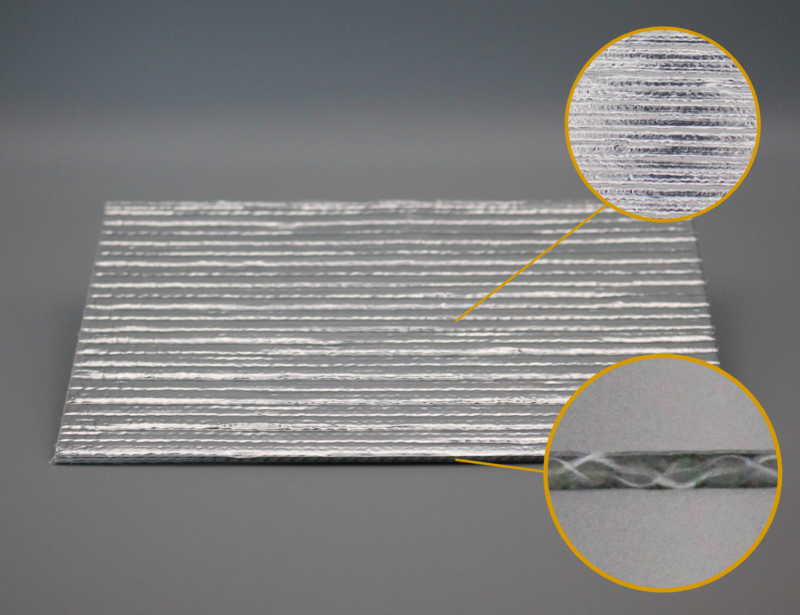

Phoenix

Some lamination processes like PCB require significant higher temperature and for this we have our press pad Phoenix!

Like the Phoenix from the ashes, this press pad will resist and remain in temperatures up to 320 degrees Celsius. Depending on the application, it can reach approx. 360 degrees Celsius. As in consequence, this press pad is a good option for lamination processes above 250 °C.

The main components are glass fiber and aluminum. The outer layers are respectively thick, we recommend protection gloves to avoid hazard!

Every pad is produced on demand, according to the specific requirements of the lamination process. Size and special treatments are hand customized here in Viersen, Germany.

  • Available thickness in mm: Approx. 2.5
  • Application: PCB, PVC, PC, ABS, PET(G), etc.


Technical Details

  • Material: Outer layers special aluminum foil, inner layer high temperature resistant glass fiber
  • Surface: Top and bottom aluminum foil
  • Max. temperature: 320 °C
  • Rebounding level: Up to 93%
  • Compression: Thickness remains over the complete lifecycle
  • Application: PCB, PVC, PC, ABS, PET(G), etc.
  • Available in thickness (article number at Schwan):
    • 2.5 mm (PPHO25)


Download Specification Data Sheet

Press Pad Phoenix

Press Pad Phoenix



Included Services

Reliable and solid packaging: Every order is shipped in a customized wooden box. Therefore, the plates can't move and damage themselves within the packaging
Test of heat conductivity: Every produced batch is tested for homogeneous heat conductivity.

Optional Services

Positioning holes: Due to laser technology, positioning holes can be applied accurate to the hundredth of a millimeter.
Marking: Data-Matrix Codes, serial number, QR-Code can be applied or customized to every scope of application.
Research & Development: We are always open to new ideas and willing to try new set-ups.
Individual shape: Apart from the standard rectangle, all kinds of shapes or cutouts are feasible.
