Lamination Pads

Our high-quality press pads are an essential tool in any lamination process. In the past, many layers of paper were used as a cushion during lamination, but today's modern press pads consist of multiple heat-resistant layers, each with specific properties to optimize performance. This innovation has allowed us to develop a range of lamination pads suitable for different applications.

We offer a wide range of pads in various thicknesses, surface textures, and heat resistances to meet your needs—whether for card lamination or other uses. Our products are designed to overcome a variety of challenges and ensure smooth and efficient lamination results.

Take a moment to explore our range! If you have any questions or special requirements, please do not hesitate to contact us. We look forward to hearing from you and supporting your projects!



Rapid

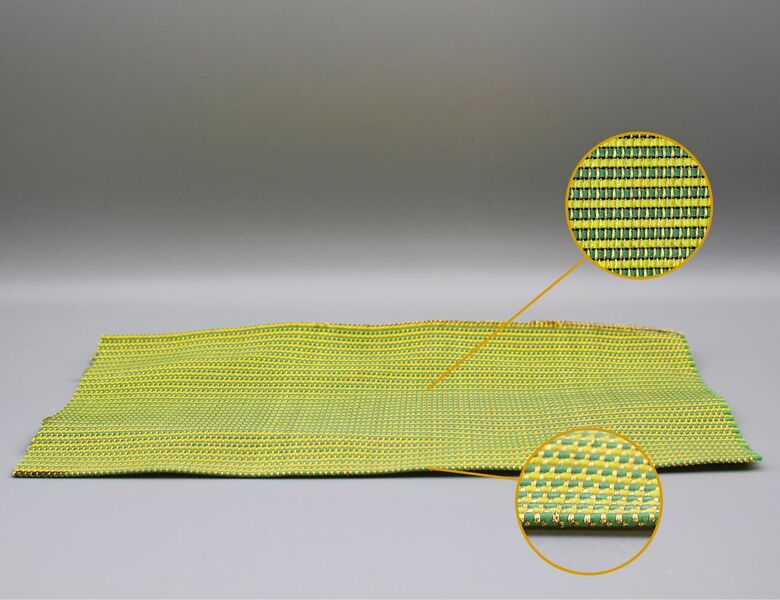

Our press pad Schwan Rapid is the latest article in the Schwan press pad range. This press pad is based on special silicone elastomers with brass wire warp threads. This combination reduces shrinkage in length and protects against abrasion of the surface. In this way, the lifetime of the press pads can be significantly extended.

Schwan Rapid is characterized by its very fast heat transfer and good padding properties, despite the high metal component.

The maximum operating temperature is 260 °C.

  • Available thickness in mm: 2.1 mm
  • Application: PCB, PVC, PC, ABS, PET(G), etc.


Technical Details

  • Material: Silicone elastomers with brass wire warp threads
  • Surface: Top and bottom structured
  • Max. temperature: 260 °C
  • Application: PCB, PVC, PC, ABS, PET(G), etc.
  • Available in thickness (article number at Schwan)
    • 2.1 mm

Download Specification Data Sheet

Press Pad Rapid

Press Pad Rapid



Included Services

Reliable and solid packaging: Every order is shipped in a customized wooden box. Therefore, the plates can't move and damage themselves within the packaging.
Test of heat conductivity: Every produced batch is tested for homogeneous heat conductivity.

Optional Services

Positioning holes: Due to laser technology, positioning holes can be applied accurate to the hundredth of a millimeter.
Marking: Data-Matrix Codes, serial number, QR-Code can be applied or customized to every scope of application.
Research & Development: We are always open to new ideas and willing to try new set-ups.
