Lamination Plates

Our high-quality lamination plates are characterized by a flawless surface. Every scratch, dent, or streak can reduce the quality of your cards – that’s why we place great importance on perfection. We are able to finish both sides of the lamination plates with a defined, uniform roughness (RA) and brightness level to ensure optimal results.

A top-grade lamination plate also features consistent thermal conductivity and heat distribution, ensuring consistently high quality. Our product range includes a wide variety of lamination plates, from classic stainless steel plates and aluminum plates to hardened variants.

Feel free to browse our selection! If you have any questions or would like to request a custom solution, don’t hesitate to contact us. We look forward to hearing from you and supporting your projects!



Aluminum Plate Card Production

Our high-quality aluminum press plates have been specially developed for the plastic card industry. These plates are lighter than stainless steel and, due to their softer material, they offer better protection for inlaid chips, which makes them ideal for the production of inlay cards and pre-lams (white cards).

We place the highest importance on quality, selecting only defect-free surfaces to guarantee high-quality output. Each plate is carefully checked for flatness to meet your exact specifications. Our master sheets are brushed, therefore only matt results are possible. Different RA-Values on request.

Each plate is produced on demand and customized to meet the specific requirements of your lamination process. Based in Viersen, Germany, we handcraft each order, paying close attention to detail, size and special treatments to deliver the perfect solution for your requirements.

  • Master Sheet Finish: light Matt - Both sides of the plates have the same finish and degree of brightness.
  • Available Thickness: 0.8 mm
  • Finish: Type D Anodized matt | Type D1 Stained matt


Technical Details

  • Material: Brushed Aluminum

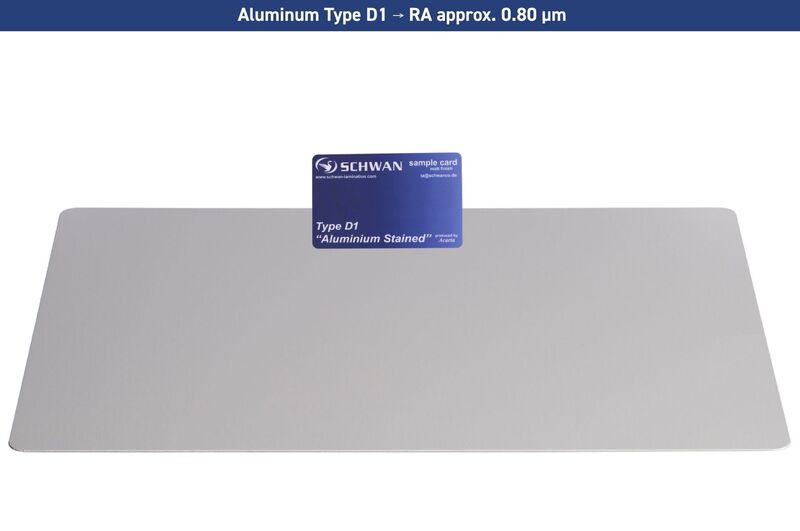

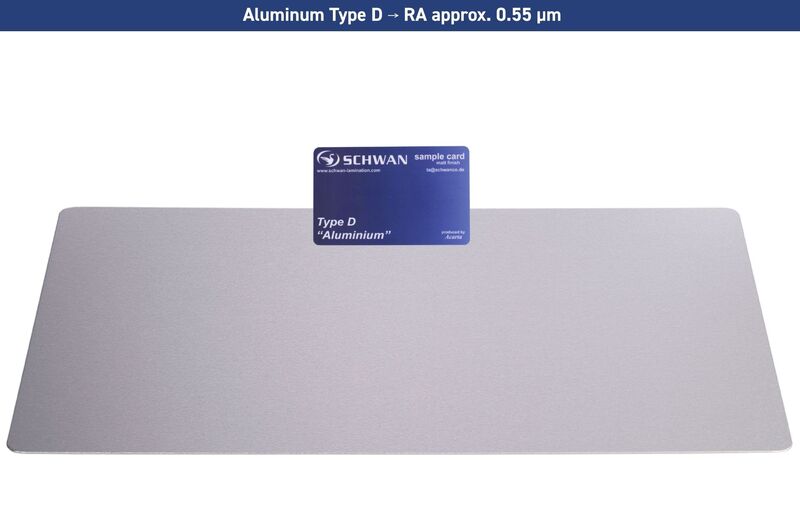

  • Roughness (RA): Type D RA approx. 0.55 µm | Type D1 RA approx. 0.80 µm
  • Size tolerance: ± 0.5 mm
  • Available thickness: 0.8 mm
  • All plates are protected on both sides with a strong foil
  • Our packaging is conform to ISPM No. 15
  • Application: PVC, PC, ABS, PET(G), etc.

Download Specification Data Sheet

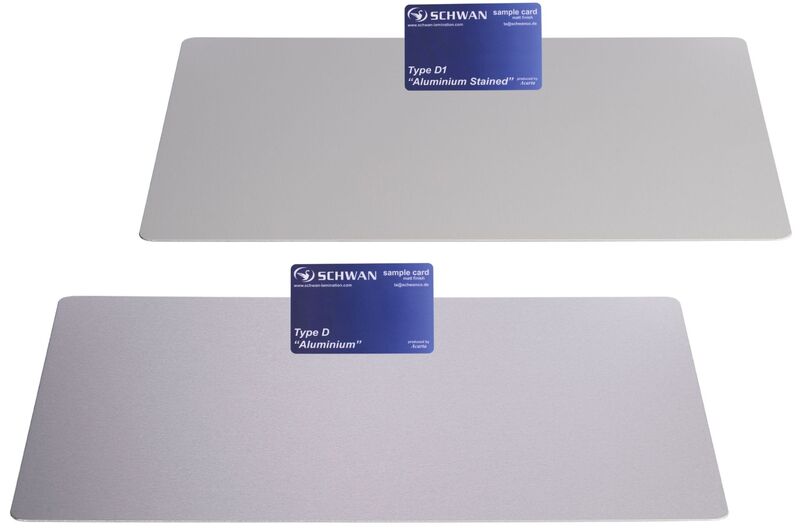

Types D and D1

Aluminum Plates




Included Services


Protection Foil: The film is protecting the plates from air particles and other substances.
Smooth Edges & Rounded Corners: During the production process, there is no danger of hurting hands.
Proofed and tested roughness value: Precise brightness is key for your surface? No problem, we check every plate
Reliable and solid packaging: Every order is shipped in a customized wooden box. Therefore, the plates can't move and damage themselves within the packaging

Optional Services


Matt finish: All kinds of roughness are possible, from semi glossy to heavy matt.
Positioning holes: Due to laser technology, positioning holes can be applied accurate to the hundredth of a millimeter.
Marking: Data-Matrix Codes, serial number, QR-Code can be applied or customized to every scope of application.
