Lamination Plates

Our high-quality lamination plates are characterized by a flawless surface. Every scratch, dent, or streak can reduce the quality of your cards – that’s why we place great importance on perfection. We are able to finish both sides of the lamination plates with a defined, uniform roughness (RA) and brightness level to ensure optimal results.

A top-grade lamination plate also features consistent thermal conductivity and heat distribution, ensuring consistently high quality. Our product range includes a wide variety of lamination plates, from classic stainless steel plates and aluminum plates to hardened variants.

Feel free to browse our selection! If you have any questions or would like to request a custom solution, don’t hesitate to contact us. We look forward to hearing from you and supporting your projects!

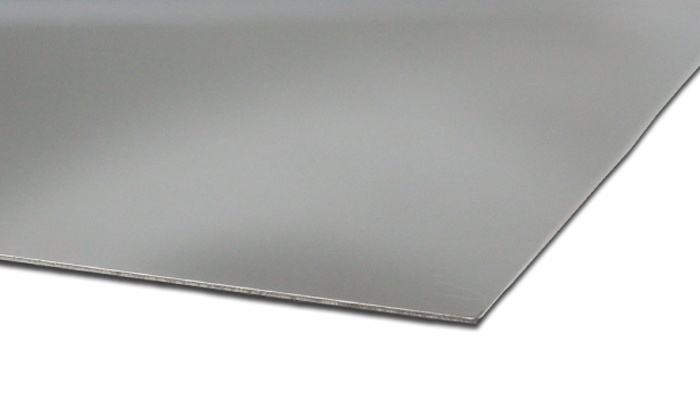

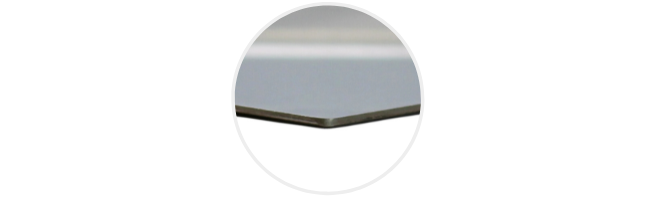

Hardened Steel Plate Card Production

Our hardened press plates are designed to withstand scratches and damage, ensuring longer life and consistently high-quality results. Perfect for the production of plastic cards, such as smart cards and bank cards.

Our hardened steel plates are carefully polished and checked for perfect flatness, ensuring defect-free lamination every time.

Each plate is produced on demand and according to the specific requirements of the lamination process. Size, surface and special treatments are customized by hand here in Viersen, Germany.

  • Master Sheet Finish: Polished - Both sides of the plates have the same finish and degree of brightness.
  • Available Thickness: 0.8 mm
  • Variants: Type FT G1 | Type FT G2

PLEASE NOTE:
Article is not on stock!
Not part of our standard product range!



Technical Details

  • Material: Stainless steel, Material 1.4016 / AISI SUS 430 BA → Mirror polished
  • Roughness (RA): High glossy plates RA < 0,03 µm
  • Size tolerance: ± 0.5 mm
  • Available thickness: 0.8 mm
  • Type FT G1:
    • Surface hardness >= 850 HV (Hardness in Vickers)
    • Material Hardness >= 400 HV (Hardness in Vickers)
    • Brightness >= 580°
  • Type FT G2
    • Surface hardness >= 400 HV (Hardness in Vickers)
    • Material Hardness >= 400 HV (Hardness in Vickers)
    • Brightness >= 600°
  • All plates are protected on both sides with a strong foil
  • Our packaging is conform to ISPM No. 15
  • Application: PVC, PC, ABS, PET(G), etc.

Download Specification Data Sheet

Type G1 and G2

Hardened Steel Plates
